Need to create an analytics server for the mobile app I made. I choose Piwik to self-host all the data in my own server. This is the full notes I made during the setup.

Create Server

The server I use is form digital ocean. Operating system is Ubuntu. I created a Linux droplet from digital ocean.

Server “LAMP” Install

First login to server using the default password. Then change the password and re-login to the server.

Then follow this guild to install. The guild is included in this documentation.

Install Apache and Allow Firewall

1
2
sudo apt-get update
sudo apt-get install apache2

Set Global ServerName to Suppress Syntax Warnings

Use the following command to check the Apache config syntax. If you do not set the server name, there will be a warning.

1
sudo apache2ctl configtest

Now in order to surpass the warning, we need to go to following file and add ServerName variable to it.

1
sudo vim /etc/apache2/apache2.conf

Go to the end of the file and add the following line.

1
ServerName server_domain_or_IP

For server_domain_or_IP If you have a domain name, use the domain name there. If not, use the ip address for the server.

Now we can retest the config and it will only return Syntax OK. Now restart Apache.

1
sudo systemctl restart apache2

Adjust the Firewall to Allow Web Traffic

When following the guide it talks about allow UFW firewall for both HTTP and HTTPS traffics. First make sure that UFW has an application profile for Apache:

1
sudo ufw app list

And we should get the following result:

1
2
3
4
5
6
#Output:
Available applications:
Apache
Apache Full
Apache Secure
OpenSSH

If look at Apache Full profile, it should show that it enables traffic to ports 80 and 443:

1
sudo ufw app into "Apache Full"

Here is the result

1
2
3
4
5
6
7
8
# Output
Profile: Apache Full
Title: Web Server (HTTP,HTTPS)
Description: Apache v2 is the next generation of the omnipresent Apache web
server.

Ports:
  80,443/tcp

Now we need to allow incoming traffic for this profile:

1
sudo ufw allow in "Apache Full"

Now we can do a spot check right away to verify that everything went as planned by visiting your server's public IP address in web browser

1
http://your_server_IP_address

You can see a default Ubuntu Apache web page. Now your web server is correctly installed and accessible through the firewall.

Install MySQL

Now that we have our web server up and running, it is time to install MySQL.

1
sudo apt-get install mysql-server

When installation is complete, we want to run a simple security script that will remove some dangerous defaults and lock down access to our database system a little bit. Start the interactive script by running:

1
mysql_secure_installation

We can enter database manually using following command.

1
mysql -p

At this point, the database system is now setup and we can move on.

Install PHP

Use the following command to install PHP

1
sudo apt-get install php libapache2-mod-php php-mcrypt php-mysql

Now we want to make Apache first look for index.php.

1
sudo vim /etc/apache2/mods-enabled/dir.conf

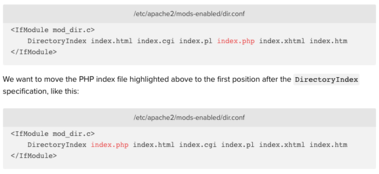

Look for index.php, move it to the first place like image below.

Now restart Apache

1
sudo systemctl restart apache2

Install PHP Modules

Currently I don’t know what additional modules we need to install, so I will leave this empty for now. Will adding content to here if anything I found is necessary.

Test PHP

Now finally, we need to test that php we installed works. Here is how. Add a info.php under the web document directory to print out php information.

1
2
3
4
5
6
sudo vim /var/www/html/info.php

# add following code into info.php
<?php
phpinfo()
?>

Now save and close file. Visit http://server_ip/info.php. It will show a php info page.

Finished

Now we have finished install LAMP stack.

Change Default WWW Directory

In case that you want to change config to a different directory, this guide can be useful.

Right now the default directory is /var/www/html. I think it does not need to change that default directory. So has not tired that guide yet.

Install Piwik

Download Piwik zip file and upload to server and unzip. If you want to visit analytic site using default address, unzip everything under root. Do not need to have Piwik directory there. If you want to visit site under https://ip/piwik, then keep the piwik folder and all files goes under that folder.

Now visit the site. You will see an error occurred. We need to set the permission for the folder. Just follow the instruction will be fine. Note there are 7 lines there. Do not paste them at once. Do it one by one. You might find that some directory not exists. That might be normal. I have this issue on test build as well.

After set permissions, refresh site.

Error Solving

At this stage, when go to the self-hosted Piwik site, we should be able to see the install wizard when accessing the site. http://server_ip

Press NEXT and solve all the errors display in this page.

mbstring

Open php.ini

1
2
3
4
5
6
7
# find config path using
php --ini

# edit php.ini, if different path, use path showing after running above command
vim /etc/php/7.0/cli/php.ini
# search for mbstring.func_overload
# remove the ; before that line

Install php-mbstring plugin

1
apt-get install php-mbstring

Now restart Apache

1
sudo systemctl restart apache2

Dom & Simple XML

Install dom extension

1
apt-get install php-dom

Install simple xml extension

1
2
apt-get install php-simplexml
apt-get install php-xml

Now restart Apache

1
sudo systemctl restart apache2

Database Setup

Create a local database user

1
2
3
4
5
6
7
8
9
#login to mysql root
mysql --user=root -p

#enter root password
#create local user account in mysql

mysql> create user 'piwik'@'localhost' identified by '_PASSWORD_';

#_PASSWORD_ is located inside lastpass.

Create a database for piwik

1
2
3
4
5
6
7
8
9
#login to mysql root
mysql --user=root -p

#enter root password
#create database
mysql> create database piwik;

#check
mysql> show databases;

Now enter the user, password, database name you just created into the website wizard database setup area.

Now give permission to newly created user piwik

1
2
3
4
5
6
7
8
9
10
#login to mysql root
mysql --user=root -p

#enter root password
#give permission
mysql> GRANT ALL PRIVILEGES ON * . * TO 'piwik'@'localhost';
Query OK, 0 rows affected (0.00 sec)

mysql> flush privileges;
Query OK, 0 rows affected (0.01 sec)

Now press next, should have no problem and will lead to next page with table create success message.

Setup a Website

Website name should be application id in android app or bundle id in iOS app.

Website URL can be anything.

Website time zone is Toronto.

Not an Ecommerce site.

Setup SSL

If press the setting icon you can see a warning saying using HTTP can be risky, recommend setup using SSL. There are two ways to setup SSL, self-assign for the test server or use a real certificate.

Currently I am building the piwik on a test server and I do not have the certificate for my company. So I self-assign one for temporary use. I plan to replace the company certificate after I got to office on Monday.

Self Assign

I was following this guide to create and self assign the certificate.

Generate Private Key

Create RSA private key.

1
openssl genrsa -des3 -out server.key 1024

Enter the PEM pass phrase. Create the password for that. Already written inside lastpass notes section.

Generate a CSR

Self-assign CSR.

1
openssl req -new -key server.key -out server.csr

There are several key point that needs to pay attention to when generate the CSR.

  1. Common Name: this needs to be the server's hostname. if the website address is https://public.akadia.com, then common name will be public.akadia.com
  2. A challenge password: Create another password for this field. This is noted inside lastpass as well.

Remove Passphrase from key

One downside is every time Apache starts up, it will ask to enter the pass-phrase. This is very inconvenient. We can remove pass-phrase using the following command.

1
2
cp server.key server.key.org
openssl rsa -in server.key.org -out server.key

Something needs to notice: after removing the pass-phrase, the private key file should only be readable from the root user. which means its user permission should be -rw-r--r-- user and user group should both be root. This should be the default case. Another thing is if anyone else get the private key, it will be very dangerous, we should revoke the key.

Generating Self-Signed Certificate

Now we want to generate a self-signed certificate. Because this is a test server and I don't plan to have certificate signed by a CA. If you are waiting the certificate signed by a CA, you can self-signed first to test the SSL setup.

1
openssl x509 -req -days 365 -in server.csr -signkey server.key -out server.crt

Enable Apache SSL Module

Take a look to make sure SSL Module has not enabled. If already enabled, we can skip this section.

1
ll /etc/apache2/mods-enabled

If ssl.conf and ssl.load are there, then it is already enabled, if not, take a look at /etc/apache2/mods-available. If those two files are there, then mod_ssl is installed. What we need to do is just enable it using the following command.

1
a2enmod ssl

Now restart server using sudo systemctl restart apache2.

Config Apache to Accept Certificates

Move generated .crt files and .key files to /etc/ssl/crt.

vim /etc/apache2/mods-enabled/ssl.conf, append following to the end of file.

1
2
3
4
5
6
7
8
<VirtualHost 138.197.161.209:443>
DocumentRoot /var/www/html
ServerName 138.197.161.209
SSLEngine on
SSLCertificateFile /etc/ssl/crt/server.crt
SSLCertificateKeyFile /etc/ssl/crt/server.key
SSLCertificateChainFile /etc/ssl/crt/intermediate.crt
</VirtualHost>

Several things needs to be noted. The server name can be different. If we have a domain name, use the domain name for ServerName.

SSLCertificateChainFile can be omitted if the certificate is self-assigned. This should be the intermediate certificate file (if any) that was supplied by the certificate authority (CA).

Make sure the DocumentRoot is correct directory that you host the website.

Now, restart the Apache using sudo systemctl restart apache2.

Additional Setup

Here is some additional setup that is preferred to setup on the Piwik server.

Force SSL

There are two ways to force SSL connection. See here for details. One is to install Force SSL plugin inside the market place. The second is to set force_ssl = 1 inside piwik/config/config.ini.php file
